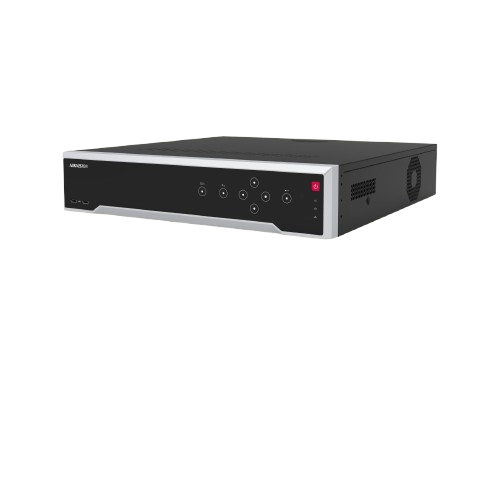

NVR DS-8616NI-K8

Professional and Reliability

• 265+ compression effectively reduces the storage space by up to 75% l Adopt stream over TLS encryption technology which provides more securer stream transmission service
• Support double verification for playback and downloading HD Video Output l Provide independent HDMI and VGA outputs
• HDMI video output at up to 4K resolution Storage and Playback l 8 SATA interfaces (up to 8 TB capacity for each HDD)
• 8/16-ch synchronous playback Smart Function
• Support multiple VCA (Video Content Analytics) events
• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting Network & Ethernet Access
• 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces l Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
• Support web access without plug-in

Specification

Model Series: DS-8608NI-K8 / DS-8616NI-K8 / DS-8632NI-K8

Video & Audio Input

IP Video Input:

  8-Channel (DS-8608NI-K8)

  16-Channel (DS-8616NI-K8)

  32-Channel (DS-8632NI-K8)

Max Resolution: Up to 8MP

Supported Resolutions:

  8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Bandwidth

Incoming Bandwidth:

 80 Mbps / 160 Mbps / 256 Mbps

Outgoing Bandwidth:160 Mbps

Video Output

HDMI 1 Output:

  4K (3840×2160) @ 60Hz / 30Hz, 1080p, 1600×1200, 1280×1024, 1280×720, 1024×768

HDMI 2 Output:

  1080p, 1280×1024, 1280×720, 1024×768

VGA Outputs (1 & 2):

1080p, 1280×1024, 1280×720, 1024×768

Output Mode:

 HDMI 1 + VGA 1 → Main Output (Simultaneous)

 HDMI 2 + VGA 2 → Auxiliary Output (Simultaneous)

 Audio

Audio Output:** 2-Channel, RCA

Two-Way Audio Input:** 1-Channel, RCA

Decoding

Video Compression: H.265+ / H.265 / H.264+ / H.264 / MPEG4

Recording Resolution: Up   to 8MP

Synchronous Playback:

   8 / 16 Channels

Decoding Capability:

  2-ch @ 8MP (25fps)

   4-ch @ 4MP (30fps)

   8-ch @ 1080p (30fps)

Stream Type: Video / Video & Audio

Audio Compression:  G.711ulaw / G.711alaw / G.722 / G.726-

 Network

Remote Connections: Up to 128 users

Protocols Supported:

  TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NAuxiliary Interface

Serial Interface: RS-232, RS-485

SATA: 8 SATA Interfaces

eSATA: 1 Port

Storage Capacity: Up to 8TB per HDD

Alarm In/Out:16 / 4

USB Ports:

 Front: 2 × USB 2.0

 Rear: 1 × USB 3.0

General Information

Power Supply: 100–240 VAC, 50–60 Hz

Power Consumption:≤ 30W (Without HDD)

Working Temperature: -10°C to 55°C

Humidity: 10% – 90%

Physical Details

Dimensions (W × D × H):**

  445 × 470 × 94 mm

Weight:** ≤ 8 kg (Without HDD)

Certifications

* CE, FCC, CB, IC, RCM, KCC, ICE-003

* FCC Part 15 Subpart B

* ANSI C63.4-2014

* CE EN 55032:2015

* EN 61000-3-2 / EN 61000-3-3

* EN 50130-4

Ideal For

✔ Corporate Security Systems

✔ Bank & Financial Institutions

✔ Industrial Surveillance

✔ Large-Scale CCTV Monitoring
