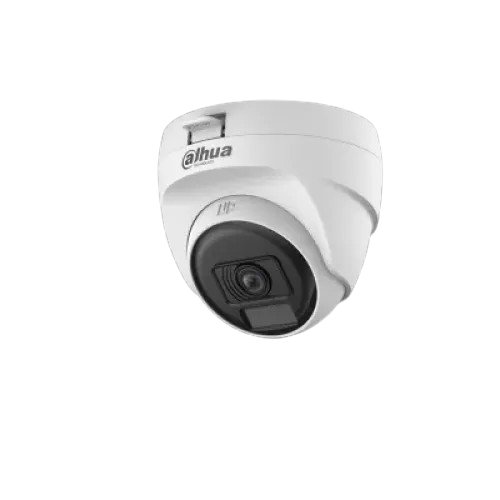

Dahua HAC-T1A21P-U-IL-A 2MP

Casing

Plastic

Dimensions

Φ85.0 mm × 77.1 mm (Φ3.35″ × 3.04″)

Weight

0.12 kg (0.26 lb)

Pan/Tilt/Rotation

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Operating Conditions

Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
Humidity: <95% (RH), non-condensing

Storage Conditions

Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
Humidity: <95% (RH), non-condensing

Power Supply

12 VDC ± 30%

Power Consumption

Max 2.1 W (12 VDC, LED on)

Image Sensor

2 MP CMOS

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Minimum Illumination

0.02 lux@F2.0 (Color, 30 IRE);
0.002 lux@F2.0 (B/W, 30 IRE);
0 lux (Illuminator on)

S/N Ratio

>65 dB

IR Distance

IR: 25 m (82.02 ft);
Warm light: 20 m (65.62 ft)

IR LEDs

2 (Warm light);2 (IR light)

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm;3.6 mm

Max Aperture

F2.0

Angle of View

2.8 mm: H: 100°; V: 54°; D: 117°
3.6 mm: H: 80°; V: 43°; D: 94°

Close Focus Distance

2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.8 m (2.62 ft)

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Frame Rate

CVI:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
AHD:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
TVI:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
CVBS:
PAL: 960H
NTSC: 960H

Day/Night

Auto(ICR)/Color/B/W

BLC Mode

BLC; HLC; DWDR

Gain Control

Auto;Manual

Noise Reduction

2D NR

Audio Interface

Built in Mic

Video Interface

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Warranty

1 year
