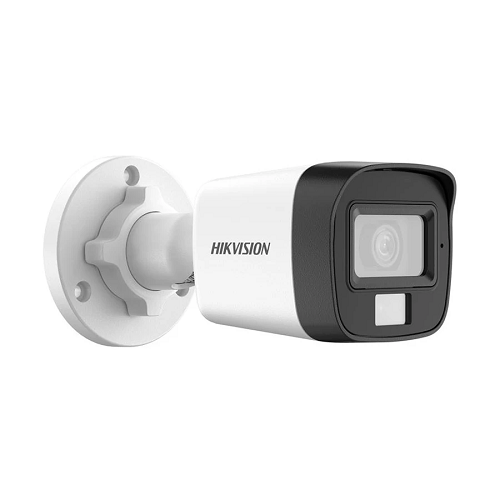

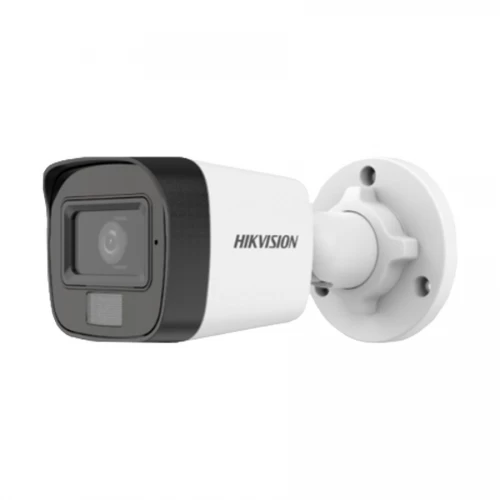

Hikvision DS-2CE16D0T-LPFS 2MP

Image Sensor

2 MP CMOS

Effective Pixels

Mega Pixels: 2.0MP

IR Distance

Up to 25 m IR range

Others

Max. Resolution: 1920 (H) × 1080 (V)
Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Day ＆ Night: ICR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Signal System: PAL/NTSC

Type

2.8 mm, 3.6 mm fixed focal lens

Focal Length

2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118°
3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°

Others

Lens Mount: M12

Dimension

138.8 mm × 60.9 mm × 57.9 mm (5.47″ × 2.4 ” × 2.3″)

Weight

Approx. 155 g (0.34 lb.)

Power

Power Supply: 12 VDC + – 25%
Power Consumption: Max. 3.3 W

Interface

Switchable TVI/AHD/CVI/CVBS

Warranty

01-Year Warranty
