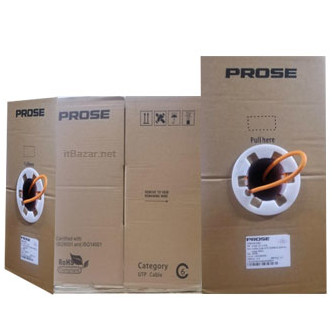

PROSE CAT- 6 U/UTP PVC Cable

PROSE CAT- 6 U/UTP PVC Cable

• Cable Type UTP
• Length (M) 305
• Certification E142890/UL
• Conductor Size: 24Awg
• Construction: Solid Bare Copper
• Cond. Diam.: 1/0.540±0.02 mm
• Insulation Avg. Thick.: 0.22 mm
• Min. Thick.: 0.21 mm
• Diameter: 0.98 ± 0.02 mm
• Wiring Standard TIA/EIA-568B.2-1 & UL444 & ISO/IEC 11801
• Material: HDPE & PVC
• Unaged Tensile Strength: 2400 Psi Min. (1.69 Kg/M2)
• Unaged Elongation: 300% Min.
• Aged Tensile Strength: Unaged Min. 75% (100°C x 48Hrs)
• Aged Elongation: Unaged Min. 75% (100°C x 48Hrs)
• Shielded Pair Stranded: 2 Cores Stranded
• Filler(Slot): HDPE Isolator Separator
• Assembly Stranded: 4 Pair Stranded
• Jacketed Avg. Thick.: 0.50 mm
• Min. Thick.: 0.45 mm
• Diameter: 5.80 ± 0.2 mm
• Unaged Tensile Strength: 2000 Psi Min. (1.41 Kg/ M2)
• Unaged Elongation: 100% Min.
• Aged Tensile Strength: Unaged Min. 85% (100°C x 240Hrs)
• Aged Elongation: Unaged Min. 50% (100°C x 240Hrs)
• Item 24Awg × 4P
• Rating Temp Voltage 75°C 300V
• Conductor Resistance 9.38 Ω/100M/20°C Max.
• Mutual Capacitance 56 pF/M Max.
• Dielectric Strength AC 1.5 KV/2 Sec.
• Spark Test 2.5 KV
• Insulation Shrinkback 150m/m, 121°C ± 1°C × 1HR≦9.5m/m
• Cold Bend Test -20°C × 4HRS No.Crack
• Flame Retardant Test CM
• AC Leakage Current Through Overall Jacket AC 1500V≦10mA
• DC Resistance Unbalance 5% Max.
• Pair-To-Ground Capacitance Unbalance 330 pF/100m Max.
• Characteristic Impedance 1 ~ 250 MHz 100 ± 15 Ohms
• Structural Return Loss 250 MHz 13.2dB Min.
• Propagation Delay 250 MHz 536.3nS/100m Max.
• Delay Skew 1 ~ 250 MHz 45nS/100m Max.
